WQG-D series gearbox, used with electric actuators, cast steel body, solid structure, to meet the requirements of industrial grade

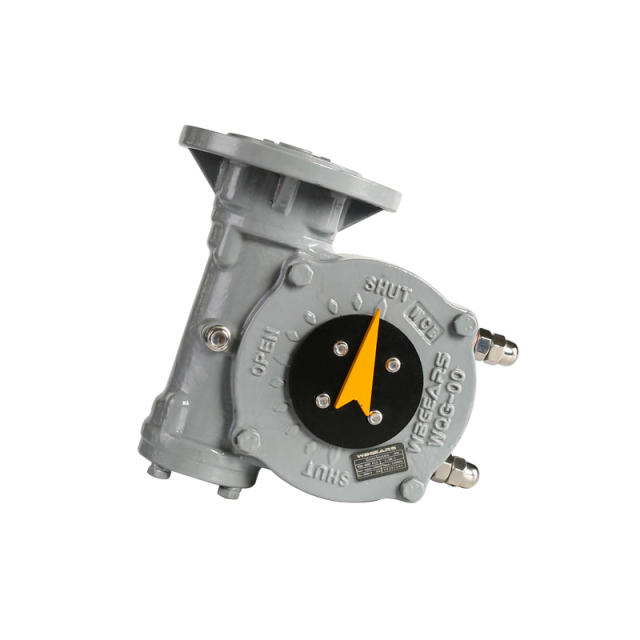

WQG-D part turn gear box series
WQG-D series gearbox, used with electric actuators, cast steel body, solid structure, to meet the requirements of industrial grade
The products use high performance tapered roller bearings, suitable for chemical industry, power plants, water plants, ventilation and heating equipment and most industrial fields.
Product Applications
WQG-D series gearboxes are available with various connection flange options for ball, butterfly and plug valves.
Product Features
Different speed ratios can be achieved with different spur reducers
Multiple input flange options
13 sizes with torque up to 120,000NM
IP67 sealing for gearboxes
Operating ambient temperature -20℃ to +80℃
Stroke 0-90° (±5° adjustable)
| WQG-D Series Electric Actuator | |||||||||
| Type | Ratio | Max Input Torque NM | Max Output Torque NM | Electric connection size | |||||
| JB2920-81 | ISO5210 | ||||||||
| WQG-00D | 38:1 | 132 | 1500 | 2# | F10 | ||||
| WQG-00SD | 76:1 | 99:1 | 78 | 42 | 1500 | F05 F07 | |||
| WQG-1D | 44:1 | 150 | 2000 | 2# | F10 | ||||
| WQG-1SD | 88:1 | 114:1 | 90 | 69 | 2000 | F05 F07 | |||
| WQG-2D | 52:1 | 160 | 3500 | 3# | F14 | ||||
| WQG-2SD | 105:1 | 158:1 | 260:1 | 130 | 100 | 53 | 3500 | 2# | F14 |
| WQG-3D | 54:1 | 300 | 4500 | 3# | F14 | ||||
| WQG-3SD | 164:1 | 216:1 | 270:1 | 108 | 82 | 65 | 4500 | 2# | F10 |
| WQG-35D | 56:1 | 450 | 6500 | 3# 4# | F14 F16 | ||||
| WQG-35SD | 170:1 | 224:1 | 280:1 | 150 | 114 | 91 | 6500 | 2# | F10 |
| WQG-4D | 56:1 | 600 | 10500 | 4# | F16 | ||||
| WQG-4SD | 167:1 | 243:1 | 340:1 | 300 | 200 | 150 | 10500 | 2# 3# | F10 |
| WQG-5D | 60:1 | 900 | 15000 | 4# 5# | |||||
| WQG-5SD | 179:1 | 242:1 | 364:1 | 450 | 300 | 200 | 15000 | 2# 3# 4# | |
| WQG-55D | 57:1 | 1200 | 23500 | 5# | F25 | ||||
| WQG-55SD | 170:1 | 345:1 | 475:1 | 450 | 300 | 250 | 23500 | 2# 3# | F14 |
| WQG-6D | 64:1 | 1800 | 32000 | 7# | F30 | ||||
| WQG-6SD | 224:1 | 320:1 | 576:1 | 680 | 450 | 250 | 32000 | 3# 4# | F14 |
| WQG-7D | 68:1 | 2500 | 51000 | 7# | F30 | ||||
| WQG-7SD | 272:1 | 415:1 | 578:1 | 900 | 600 | 360 | 51000 | 3# 4# 5# | F16 |
| WQG-75D | 65:1 | 3200 | 64000 | F30 | |||||
| WQG-75SD | 338:1 | 453:1 | 900 | 680 | 64000 | 5# | F25 | ||
| WQG-8SD | 397:1 | 1375:1 | 900 | 680 | 81000 | 3# 5# | |||
| WQG-9D | 382:1 | 513:1 | 755:1 | 1200 | 900 | 600 | 120000 | 4# 5# | F25 |
| WQG-9SD | 1018:1 | 1538:1 | 2308:1 | 450 | 300 | 200 | 120000 | 3# 4# | |
