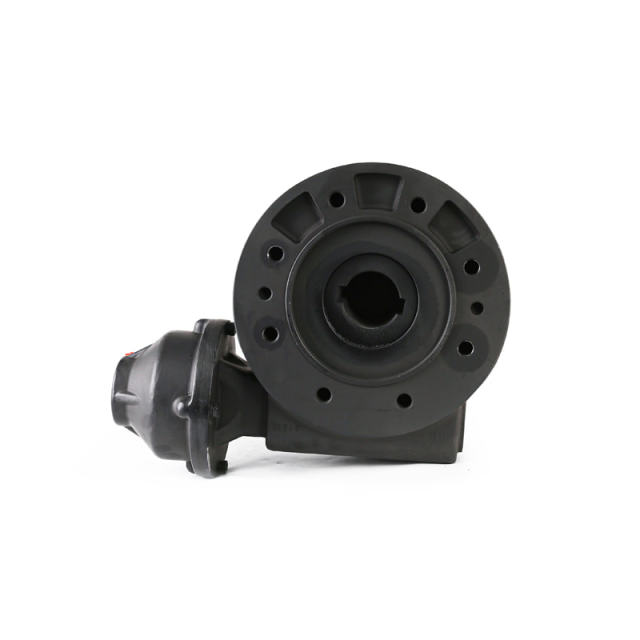

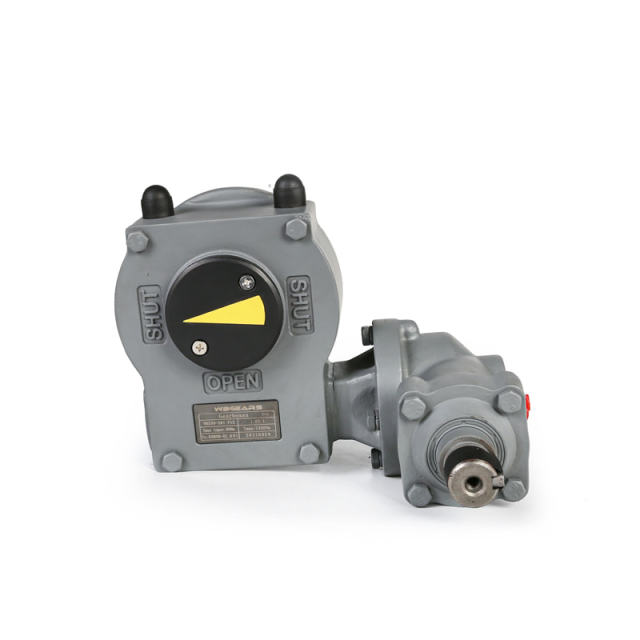

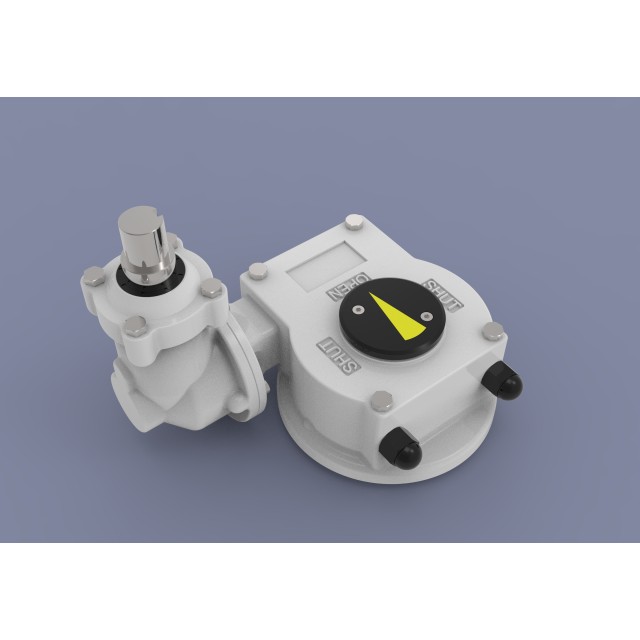

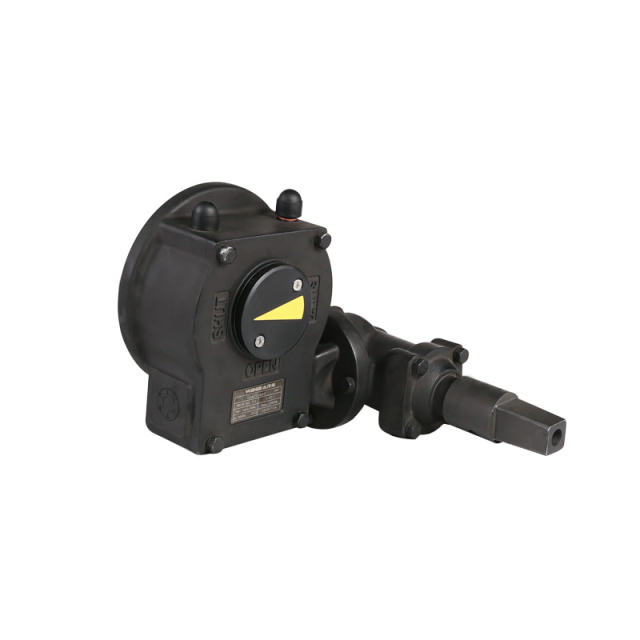

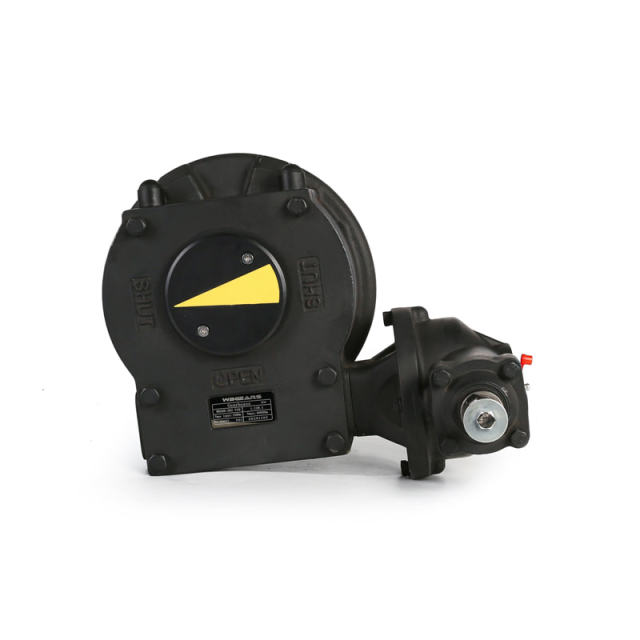

WBS-G series gearbox, through the WBS part-turn gearbox and bevel gear, the direction of the input shaft is changed by 90°, to meet the needs of varied applications.
Feature of product
▪ Embedded application▪ Stroke: 0-90° (±5° adjustable)
| Type | Technical Parameters | Dimensions | |||||||||||||||||
| Model | Ratio |
Maximum stem diameter |
Output | Input | Enlarge | Connection | D1 | L max | A | B | D | E | H | J | G | K | Key | Handwheel | |
| TorqueNm | Coefficient ±15% | Flange | |||||||||||||||||
| A | WBS20-SR0.5 | 46:1 | 28 | 520 | 50 | 10 | F07 | 90 | 57 | 185 | 134 | 167 | 20 | 29 | 64 | 160 | 180 | 6 | 200 |
| F10 | 125 | 57 | 185 | 134 | 167 | 20 | 29 | 64 | 160 | 180 | 6 | 200 | |||||||
| WBS21-SR0.5 | 47:1 | 36 | 850 | 75 | 11 | F10 | 125 | 68 | 200 | 142 | 186 | 20 | 36 | 74 | 167 | 180 | 6 | 300 | |
| F12 | 150 | 63 | 200 | 142 | 186 | 20 | 31 | 71 | 162 | 180 | 6 | 300 | |||||||
| F14 | 175 | 73 | 216 | 150 | 186 | 20 | 41 | 79 | 172 | 180 | 6 | 300 | |||||||
| WBS30-SR1 | 62:1 | 45 | 1350 | 90 | 15 | F12 | 150 | 85 | 219 | 152 | 223 | 28 | 46 | 93 | 203 | 212 | 6 | 350 | |
| F14 | 175 | 85 | 219 | 152 | 223 | 28 | 46 | 93 | 203 | 212 | 6 | 350 | |||||||
| F16 | 210 | 85 | 235 | 160 | 223 | 28 | 46 | 93 | 203 | 212 | 6 | 350 | |||||||
| WBS55-SR1 | 72:1 | 50 | 2000 | 115 | 17 | F14 | 175 | 91 | 241 | 163 | 243 | 28 | 50 | 99 | 206 | 212 | 6 | 400 | |
| F16 | 210 | 91 | 241 | 163 | 243 | 28 | 50 | 99 | 206 | 212 | 6 | 400 | |||||||
| WBS66-SR1 | 85:1 | 55 | 2500 | 125 | 20 | F14 | 175 | 89 | 248 | 170 | 250 | 28 | 51 | 97 | 208 | 208 | 6 | 500 | |
| F16 | 210 | 89 | 248 | 170 | 250 | 28 | 51 | 97 | 208 | 208 | 6 | 500 | |||||||
| WBS88-SR2 | 128:1 | 65 | 4000 | 150 | 27 | F16 | 210 | 105 | 367 | 269 | 303 | 28 | 55 | 115 | 234 | 258 | 6 | 500 | |
| F20 | 260 | 108 | 367 | 269 | 303 | 28 | 58 | 118 | 234 | 258 | 6 | 500 | |||||||
| F25 | 300 | 105 | 367 | 269 | 303 | 28 | 55 | 115 | 234 | 258 | 6 | 500 | |||||||
| WBS195-SR2 | 128:1 | 80 | 6500 | 241 | 27 | F16 | 210 | 117 | 391 | 281 | 333 | 28 | 62 | 125 | 241 | 258 | 6 | 600 | |
| F20 | 260 | 117 | 391 | 281 | 333 | 28 | 62 | 125 | 241 | 258 | 6 | 600 | |||||||
| F25 | 300 | 117 | 391 | 281 | 333 | 28 | 62 | 125 | 241 | 258 | 6 | 600 | |||||||
| WBS295-SR4 | 263:1 | 90 | 8500 | 135 | 63 | F25 | 300 | 141 | 455 | 313 | 449 | 28 | 70 | 153 | 280 | 324 | 8 | 600 | |
| F30 | 350 | 141 | 455 | 313 | 449 | 28 | 70 | 153 | 280 | 324 | 8 | 600 | |||||||
| WBS300-SR4 | 232:1 | 90 | 9500 | 190 | 50 | F25 | 300 | 145 | 500 | 351 | 420 | 28 | 70 | 153 | 280 | 324 | 8 | 600 | |
| F30 | 350 | 145 | 500 | 351 | 420 | 28 | 70 | 153 | 280 | 324 | 8 | 600 | |||||||
| B | WBS300-BR6-SR1 | 535:1 | 95 | 11000 | 79 | 139 | F25 | 300 | 145 | 500 | 351 | 385 | 28 | 70 | 153 | 249 | 260 | 8 | 600 |
| F30 | 350 | 145 | 500 | 351 | 385 | 28 | 70 | 153 | 249 | 260 | 8 | 600 | |||||||
| WBS680-BR6-SR1 | 572:1 | 110 | 16000 | 99 | 162 | F25 | 300 | 148 | 563 | 383 | 424 | 28 | 71 | 156 | 250 | 260 | 8 | 600 | |
| F30 | 350 | 148 | 563 | 383 | 424 | 28 | 71 | 156 | 250 | 260 | 8 | 600 | |||||||
| WBS780-BR11-SR2 | 1093:1 | 130 | 23500 | 83 | 283 | F30 | 350 | 175 | 666 | 475 | 474 | 28 | 96 | 193 | 275 | 284 | 8 | 600 | |
| F35 | 415 | 175 | 666 | 475 | 474 | 28 | 96 | 193 | 275 | 284 | 8 | 600 | |||||||
| WBS980-BR16-SR2 | 1328:1 | 140 | 30000 | 81 | 370 | F30 | 350 | 178 | 709 | 502 | 552 | 28 | 107 | 185 | 286 | 313 | 8 | 600 | |
| F35 | 415 | 184 | 709 | 502 | 552 | 28 | 107 | 191 | 286 | 313 | 8 | 600 | |||||||
| F40 | 560 | 188 | 709 | 502 | 552 | 28 | 107 | 196 | 286 | 313 | 8 | 600 | |||||||
| WBS1080-BR21-SR2 | 1550:1 | 145 | 36000 | 86 | 419 | F35(F30) | 415 | 180 | 715 | 512 | 572 | 28 | 119 | 190 | 298 | 323 | 8 | 600 | |
| F40 | 475 | 213 | 715 | 512 | 572 | 28 | 119 | 223 | 298 | 323 | 8 | 600 | |||||||
| C | WBS1180-PR29-SR2 | 2463:1 | 180 | 55000 | 86 | 640 | F35 | 415 | 205 | 817 | 567 | 663 | 28 | 133 | 221 | 312 | 336 | 8 | 600 |
| F40 | 475 | 205 | 817 | 567 | 663 | 28 | 133 | 221 | 312 | 336 | 8 | 600 | |||||||
| F48 | 560 | 205 | 817 | 567 | 663 | 28 | 133 | 211 | 312 | 336 | 8 | 600 | |||||||
| WBS1190-PR35-SR2 | 2692:1 | 200 | 70000 | 96 | 729 | F40 | 475 | 210 | 837 | 585 | 758 | 28 | 138 | 220 | 317 | 351 | 8 | 600 | |
| F48 | 560 | 210 | 837 | 585 | 758 | 28 | 138 | 220 | 317 | 351 | 8 | 600 | |||||||
| WBS1280-PR53-SR2 | 4010:1 | 210 | 90000 | 80 | 1125 | F40 | 475 | 225 | 909 | 624 | 787 | 28 | 138 | 231 | 317 | 382 | 8 | 600 | |
| F48 | 560 | 225 | 909 | 624 | 787 | 28 | 138 | 231 | 317 | 382 | 8 | 600 | |||||||
| WBS1380-PR53-SR2 | 5244:1 | 260 | 120000 | 85 | 1411 | F48 | 560 | 257 | 816 | 626 | 995 | 28 | 158 | 265 | 337 | 481 | 8 | 600 | |
| F60 | 686 | 257 | 816 | 626 | 995 | 28 | 158 | 265 | 337 | 481 | 8 | 600 | |||||||
| WBS1380-PR54-SR2 | 5284:1 | 260 | 140000 | 100 | 1400 | F48 | 560 | 257 | 1078 | 626 | 995 | 28 | 158 | 265 | 337 | 481 | 8 | 600 | |
| F60 | 686 | 257 | 1078 | 626 | 995 | 28 | 158 | 265 | 337 | 481 | 8 | 600 | |||||||
| WBS1480-PR67-SR2 | 6439:1 | 300 | 180000 | 108 | 1667 | F60 | 686 | 280 | 1221 | 855 | 1150 | 28 | 178 | 295 | 357 | 382 | 8 | 600 | |
| WBS1580-PR106-SR2 | 9615:1 | 350 | 250000 | 96 | 2604 | F60 | 686 | 328 | 1585 | 1027 | 1174 | 28 | 193 | 370 | 372 | 442 | 8 | 600 | |
| F80 | 800 | 328 | 1585 | 1027 | 1174 | 28 | 193 | 370 | 372 | 442 | 8 | 600 | |||||||
| WBS1680-PR142-SR2 | 11538:1 | 350 | 300000 | 100 | 3000 | F60 | 686 | 328 | 1685 | 1085 | 1174 | 28 | 193 | 370 | 372 | 442 | 8 | 600 | |
| F80 | 800 | 328 | 1685 | 1085 | 1174 | 28 | 193 | 370 | 372 | 442 | 8 | 600 | |||||||
